Record Audio Equipment

Vintage II Turntable

This was developed to meet the requirements both of serious music listeners and collectors of "vintage" records. These units will take the place of inferior older turntables, or enable you to use one turntable for Lp's, 45's and 78's. The Vintage II turntable is fully compatable with all modern audiophile stereo amplifiers systems. It is common knowledge that so-called 78's, are often not really recorded at 78 rpm. There are agreed upon fixed speeds that may be used for certain brands of older recordings. Edison for example, stated their speed as 80 rpm. The Esoteric turntable provides a modern hi-fi turntable/tonearm combination which includes not just 33, 45, & 78 (78.26), and a variable pitch control, but three other fixed speeds. Once you begin playing 78's at their correct pitch, you will never be able to tolerate previous 78 turntables. For those with a need to play vertically cut discs, a built-in switch is available as an extra cost option.

(Unit does not come with cartridge or stylus)
Vintage II Turntable - price........................$395.00
  • **
  • 71.29 for Berliners, early Victors (no label), Zonophones.
  • 76.59 for acoustic Victors (many)
  • 78.26 for modern 78's
  • 80.00 for Edison, vertical Pathe (paper label), acoustic Columbia/Okeh, most verticals.

Specifications:

Arm return:Semi-automatic with auto-return and shut-off.
Drive system:FG servo DC motor, belt drive.
Stroboscope:Built in for 33 & 45 (separate disc for 78's)
Pickup:P-mount
Speeds:33.33, 45, 71.29, 76.59, 78.26, 80rpm**
Pitch control:+/- 8%

Accessories:

Stanton L720 w/.7 mil Lp & 2.7 mil 78 stylus (list $154)$85.00
Grado Prestive w/elliptical Lp & 3.0 mil 78 Stylus (list $120)$65.00
Vert/Lateral switch (for use with Edisons & Vert.cut discs)$40.00
Center start option (some Pathe' etc that play from center-out)$10.00
Cueing start switch (manual motor on/off)$20.00
Dust cover 7 connecting cablesN/C

Rek-O-Kut CVS-14

Turntable Price $565.00

The 50th Anniversary Edition REK-O-KUT CVS-14 is a fully manual 33/45/78 RPM turntable with a continuously variable and calibrated "78" range of from 62 to 94 rpm. The high-torque, direct-drive

Rek-O-Kut -CVS-14

Direct-Drive Motor

motor provides fast start and stop braking.A switch is provided which permits playing vertical cut records such as Edison and Pathe records. Supplied with dust cover, slip mat and our 12-speed Super Strobe for speeds from 68.5 to 90 rpm. Not supplied with phono cartridge or styli. These must be purchased separately. The CVS-14 is recommended for both audiophile and vintage records.

Specifications:

  • Platter: 13 1/16" 1.75 Lbs. / Strobe built in 33/45
  • Tracking force Calibration Range: 0-3 grams
  • Anti-skating Force Range: 0-4 grams
  • Pitch control: +/- 6%
  • Wow & Flutter: 0.06% (WRMS)
  • Rumble: -80 db (DIN-B)
  • Hum & Noise: -60 db, 70db (LN)
  • Dimensions: 17 3/4 x 13 3/4 x 6
  • Drive system: Belt DC motor Cue lever/motor start switch
  • Warranty: 1 year from date of purchase
Link to additional specs

Accessories:

Stanton L720 w/.7 mil Lp & 2.7 mil 78 stylus (list $154)$85.00
Grado Prestive w/elliptical Lp & 3.0 mil 78 Stylus (list $120)$65.00
Vert/Lateral switch (for use with Edisons & Vert.cut discs)$40.00
Center start option (some Pathe' etc that play from center-out)$10.00
Cueing start switch (manual motor on/off)$20.00
Dust cover 7 connecting cablesN/C
Spare Headshell$16.00

Rek-O-Kut Rodine Jr.

Six Speed Budget Price

Recommended for medium to low priced audio systems or as a second player for 78's. This unit comes with cartridge & 78/LP stylus.
RA-6 Turntable - price.........................$295.00

Accessories:

(Same as above with the following exceptions)

Platter:Semi-automatic with auto-return and shut-off.
Min.tracking force: 2.0 grams
Drive System:Belt, DC Motor
Stroboscope:33 built in + seperate disk for 45,78
Dimensions:16 1/2" x 13 3/4" x 4 1/2"
Warranty:1 year from purchase date
Links to additional specs--

Rek-O-Kut CVS-16 - price..........$695.00
The50th Anniversary Edition REK-O-KUT CVS-16 is a fully manual 33/45/78 RPM turntable with a continuously variable and calibrated "78" range of from 62 to 94 rpm.The high - torque, direct-drive motor provides fast start and stop braking.
Rek-O-Kut CVS-16
Six Speed 16" Capacity Manual Turntable

A switch is provided which permits playing vertical cut records such as World Transcriptions and Edison records. Supplied with dust cover, slip mat, and our 12-speed Super Strobe for speeds from 68.5 to 90 rpm.Not supplied with phono cartridge or styli. These must be purchased separately. TheCVS -16 is recommended for both audiophile and vintage recordings.

Specifications:

Platter:13 1/16" 1.75 lbs
Drive System:Belt, DC Motor
Pitch Control+/- 8%
Wow & Flutter:0.025% (WRMS)
Dimensions:17 3/4" x 13 3/4" x 6"
Warranty:1 year from purchase date
additional specs--
Record Player

Self Contained Record Players Box Type W/ Cover & Handle Plays 78-45-LP (also has 16rpm) Most mfg. by Califone, and were previously used by the Public School System. Guaranteed to be in working order, they are a most powerful unit. Not audiophile quality but great for playing those old 78's if you don't want to get into the more deluxe systems. These players are various units like the one below, not exactly like photo.

Price.................................$75.00

Rek-O-Kut -Rodine 3

Price $1250.00

The RONDINE 3 provides 33, 45, and 78 rpm and nine other fixed speeds for vintage discs and half-speed mastering. The very small DC belt-drive motor and Lo-Noise power supply results in very low rumble and ultra-low hum.Arm height is adjustable for all discs. The Delrin platter is similar in composition to the actual discs played and provides them with excellent dampening. The reproduced sound is neutral. The large diameter spindle bearing is both low friction and low noise. Its Rek-O-Kut TranScribe arm is of low mass with low friction bearings for audiophile performance. Suspension is provided by four vibration absorbent feet. Vertical cut discs are playable with an extra modified headshell/cartridge. Supplied with dust cover, and 12-speed Super Strobe for speeds from 68.5 to 90 rpm.Not supplied with phono cartridge or styli. These must be purchased separately.Recommended for both audiophile and vintage recordings.

Links to additional specs--

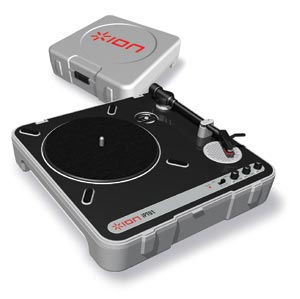

ION IPT01 Portable Turntable

Now you can have the fun of playing your old records but with a new more portable attitude.

Our Price: $119.99

Here’s a great pick-up-and-go deck for the anyone on the move. This rugged turntable is packed with features like tone, gain, and pitch control, high-quality slipmats, and stereo line-out for recording. A convenient carry handle is built in, and the iPT01 will fit perfectly in a record crate with your vinyl.

  • 12" X 12" X 3.875" - compact size!!
  • Convenient carry handle
  • Removable dustcover with locking slide latch
  • 7" platter plays at 33, 45, and 78 RPM
  • Plays both 12" and 45 records with included 45 adapter
  • +/-10% pitch control
  • Tone and gain control
  • Onboard monitor for use without headphones
  • High quality felt slipmat allows for scratching
  • Durable auto-start/stop tonearm
  • 1/8" & 1/4" headphone outputs
  • Line out for recording
  • Use 6 "D" Cell batteries (not included) or use included 12V DC transformer

Additional Accessories:

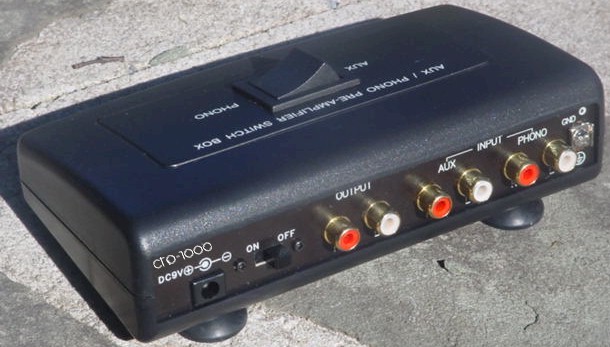

MCM Custom Audio-Phonograph Preamplifier/Input control

This phono preamp allows connection of M/M 9moving magnet) cartridge turntables, plus Aux (line level) source, to the input of any Audio system. It most frequently used to connect to the input of PC soundcard, offering the ability to transfer vinyl records to computer & CD, by only using this preamp and turntable.

Price $59.00 plus p/h

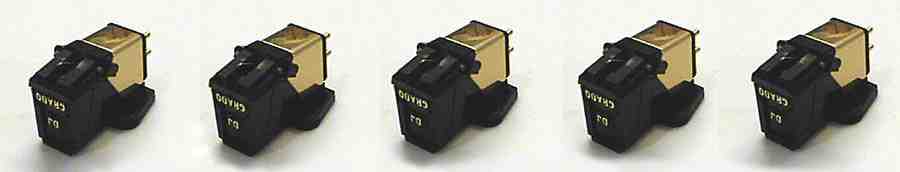

REK - O - KUT ARCHIVAL REPRODUCER KIT

(Cartridges With Styli)

Using styli of various sizes to overcome noise in records caused by wear and abuse is a common technique. Older records often require larger tips for standard play. Up until now, such styli have cost up to $125.00 each. To prevent damage, it is often desirable to mount such delicate styli in their own cartridges. A kit of five Stanton, custom styli and five 500 series cartridges would normally list at $850.00!

Esoteric Sound has put together a kit of five Grado DJ-100, 2 - 5 Gram tracking cartridges, each equipped with a different diameter, custom-made stylus suited for vintage records. Each stylus is conical/spherical in shape and can be used for archival or casual play of records without concern for undue wear on the record. The kit consists of the following cartridge/stylus diameters:

DJ-100/2.0, DJ-100/2.5, DJ-100/3 .0, DJ-100/3.5, DJ-100/4.0

REK-O-KUT ARCHIVAL REPRODUCER KIT (ROKARK) - Price: $450.00

When purchased with the kit, a set of five standard headshells is available for: $65.00.


REK - O - KUT ARCHIVAL STYLI FOR GRADO PICKUPS

(Stylus Alone)

Larger styli can play older and/or worn 78 rpm records above the groove wear. Smaller tips play records below surface blemishes. These styli are made to fit Grado cartridges, such as the DJ-100. They are conical/spherical in shape, track at 2 - 5 Grams, and can be used for archival or casual play of records without concern for undue wear on the record.

Recommended as a standard size for Edison Diamond Disc and miscellaneous 20's and 30's records is 3.5 mil. Recommeded for raw aluminum and 1930's RCA pregrooved disks is 4.0 mil. The following diameter sizes are available:

  • DJ-2 - 2.0 mil - $75.00 worn Lps, some transcriptions
  • DJ-2.5 - 2.5 mil - $75.00 many 78's, transcriptions
  • DJ-3 - 3.0 mil - $40.00 most 30's-50's slightly worn 78s & transcripions
  • DJ-3.5 - 3.5 mil - $75.00 old or worn 78s, transcriptions
  • DJ-4 - 4.0 mil - $75.00 very old or worn discs, raw aluminum, RCA home
  • Kit of all five (STYLUSKIT) - $325.00

  • Belts for turntables $12.00
  • Replacement dust cover $45.00
  • Mat (rubber) for turntables $12.00
  • Slip Mats (Black Felt) for cuing $6.00
  • Spare Headshell (Rodine jr/CVS) $16.00
  • Spare Headshell (Kit of 5) $65.00
  • Vertical/Lateral Switch (Vintage/Rodine Jr) $40.00
  • all above plus shipping

Professional Stereo Moving Magnet Preamp

Add a turntable to an amp that has no phono input or a second turntable to an amp with only one phono input. This unit can be used to convert any AUX input to phono use. This preamp will make it possible to use any amplifier or mixing console for playback with a turntable that is equiped with a conventional, moving magnet phono cartridge. The Preamp boosts the level of the magnetic cartridge and also applies “record compensation” in form of the RIAA curve. This adjusts relative levels of bass and treble to match that of modern records. Used with the Esoteric Re-Equalizer, it makes a fully adjustable playback system for mono records. For those who wish ONLY to play vintage records we can furnish it with Flat, 78-only record compensation.

* Input matched to most high-quality pickups
* Obtainable with 78-only (Flat) EQ
* High-quality gold plated RCA jacks
* Discrete component design
* Power: 120 VAC/60 Hz
* Low hum steel case

Minimum Performance Specifications:

RIAA Deviation: +/- 0.5 dB
THD: 0.05%
Signal/Noise: better than 70 dBA
Sensitivity: 3.4 mV
Input Imp: 47 kOhms and 220 pF
Overload margin: 20 dB
Crosstalk: 40dB at any frequency betwee 20-20 kHz
Dimensions: 5 5/8”x1 1/2”x3 1/4”
Shipping Wt: 2 Lbs
PRICE: $69.95


Esoteric Sound Super Connector

For interconnection of recorders and hi-fi components

Features:

*Adds 3 extra inputs to your amp/preamp: Tuner/Aux1, CD/Aux2 and TV/LD. Relabel them as desired.
*Facilitates connection of up to 5 recorders: DAT, Cassette, RCDR1, RCDR2, and external recorder.
*Has MONO mode switch to facilitate recording mono sources or to accomodate mono equalizers or single channels of a source.
*Convenient connection of external recordeer via front panel 1/4” stereo plugs.
*Listen to any main source while dubbing between decks.
*Easy straight-line path. Easy to understand and set up.
*Monitor any recorder while taping from any source/recorder.

Construction:

*High quality, double-sided, fiber glass epoxy PCB.
*34 Gold-plated RCA connectors.
*Black anodized, brush aluminum finish. Rack mountable, 19”x1.75”x6”.

PRICE: $299.00 plus shipping.

Esoteric Surface Noise Reducer

For ALL Phono Records

The Esoteric Sound Surface Noise Reducer eliminates or reduces the clicks and pops found on most types of phonograph records. The Surface Noice Reducer circuit topology employs the latest in modern digital integrated circuits and a design algorithm which can identify and remove most clicks and pops found in Lps and even 78’s and other vintage records. The Noise Reducer unlike an equalizer, acts ONLY on the click or pop without effecting program material.

Features:

*70-90% effective on Lps and 20-40% effective on most vintage records.
*Suitable for professional CD mastering or broadcast use.
*Professional quality design and construction.
*19” rack mount standard at no extra cost.
*Film coupling capacitors assure low TIM and transparent sound.
*Works with phono, tape outputs-any source
*Gold plated RCA connectors
*Very low distortion & noise
*Stereo or Mono

Specifications:

THD: Less than 0.02% at 1kHz
HUM & NOISE: 95 dB below rated output
RESPONSE: 20-20khZ +/- 0.20 dB
MAX OUTPUT: 6.5 Volts RMS
INPUT IMP: 50 k Ohms
OUTPUT IMP: 50 Ohms
CONTROLS: Distortion Limiting, Quieting, Bypass/In
LED’S: THD, Noise reduction
POWER: 120 VAC/60 Hz, 230 VAC/50 Hz-foreign
CONSTRUCTION: Black anodized case, gold plated connectors
SIZE: 19”x1.75”x7”
PRICE: $425.00 plus shipping

Operation:

1- Connect Surface Noise Reducer to your audio system just as you would a graphic equalizer.
2- While playing loud music portions from a record, the “DISTORTION LIMITING” control is advanced until the “THD” LED illuminates.
3- The “QUIETING” control is advanced until the “NOISE REDUCTION LED” flashes indicating that clicks and pops are removed.


DC SIX Audio Restoration, Audio Enhancement, Audio Editing Software

DC-SIX Software

The top spot is a nice place to be. DC FIVE was a great product and immensely popular. It was also the most powerful audio restoration/enhancement/editing product on the market. As we began our planning sessions for DC SIX, we were able to do it with little concern for competitors and a total focus on pleasing our customers. Ease of use, speed, and more power were the requests. Ease of use, speed, and more power is what DC SIX delivers. Our goal was to create the most powerful product we could and offer the uneducated user stunning results within minutes of opening the box. DC SIX will not disappoint.

Easy Noise Removal
Play and Edit AVI Audio
Rip and Auto-name CD Audio

EZ Clean- One click noise reduction. Now, even the most inexperienced user can clean their treasured vinyl and tape recordings with one click of the mouse. DC SIX includes a powerful new automated system that seeks and destroys clicks, pops, hiss, hum and other disturbances common to older recordings.

CD Ripping- Now you can quickly and easily convert your audio CDs to Wave files or MP3 files using DC SIX's new CD Ripper. Just go to File/Open, choose your CD Rom drive and select any number of the files there to be transferred immediately to wave audio so you can work on them with DC SIX.

Speed To Burn-We've Turbo-charged the algorithms in the Impulse Filter, the Continuous Noise Filter, the Brick Wall Filter and the Median filter. You should notice an improvement in the speed of the algorithms anywhere from 20-80%.

Direct X Support - Now you can use your favorite plug-ins within the DC SIX operating system. You can even use them in the DC SIX Multi-Filter.

Auto Leveling- Got a bunch of files of varying volumes that you'd like to make into a CD? No problem, just go into our Batch File editor and tell it to Auto Level these files. The Auto Leveler will raise the level or normalize all of the files so that your CD level will not fluctuate during playback.

Adaptive Filtering Added To Continuous Noise Filter- This intelligent filter adapts itself to the changing nature of the noise in your file. As it gets smarter, your noise disappears.

CD Database Integration- If you're working with CDs, DC SIX will instantly dial up the Internet CD Database and assign the names to all of your tracks before you rip them. This will save you the time of doing a Save As when you name the files.

No Time Limits- The wave file format has a 2 gigabyte limit. For those of you recording long radio shows or other events, this can be a real problem. Not with DC SIX. Though we can't fix the problem for Microsoft, we can find a nifty way of working around it. As we approach the limit, we simply stop the recording and open a second file. You get your whole recording...just split into several files.

AVI Audio Support- Many of our customers wanted the ability to open an AVI file and extract the audio for editing. Many of our customers will now be happy! You can play an AVI within DC SIX, you can select an area and extract the audio.

Multi-Codec Sensor Support- Now you can import and export to any Codec that's installed on your machine. These popular compression standards include: A-Law, Mu-Law, ADPCM and more.

FAT BASS - Using the new FAT BASS section of our Virtual Valve Tube Simulator, you can build up weak or inadequate bass lines in your favorite tunes and get those floors rattling again.

20-Band Graphic EQ- AddedAnother powerful and easy to use enhancement and noise reduction tool.

Echo Effect Added- The Echo Effect contains two independent delay lines, which can be used in a number of different modes providing it with a great deal of flexibility compared to the old analog systems. Because it performs its function utilizing digital techniques, it does not suffer from the noise and distortion buildup associated with the older analog systems.

DC SIX Also Includes:

Easy DeClick and DeCrackle - This process is not only much easier to manage, but it also finds and repairs a much wider range of clicks and pops.

Fast Multi-tiered Editor - This new mode of operation allows instant editing with each level saved in the Fast Edit History Window, so instant undo over numerous levels is easy. Cut/Copy/Paste instantly…regardless of file length.

Sample Rate Conversion - Quickly convert your files from one common sample rate and bit depth to another.

LIVE Feed through Mode -You don’t need to necessarily have your audio recorded to the hard drive to take advantage of the numerous features of SIX. Live mode allows you to run dirty audio in the inputs of your sound card, set up your numerous filters on the screen and have cleaned audio flow out the output of your sound card in real time.

Spectral Subtraction Filter In Continuous Noise - An amazing new feature within the Continuous Noise filter…very helpful in situations where you’re wading through recordings that are loaded with lots of ambient noise.

Time Compression and Expansion (Stretch and Squish) - Now you can speed up or slow down the speed of an audio file and keep the pitch constant.

Cue Sheet Support for CD Burning - You can now generate a .cue sheet that is compatible with many of today's most popular CD burning programs.

Wave file to MP3 Conversion via popular encoders - Now, via the use of popular outboard encoders (Blade, Lame, Ogg Vorbis, Xing), you can quickly and easily convert any wave file to MP3 format from within the program.

Weighting Function added to Median Filter - This new function from within the Median Filter allows you to control the Timbre of your wave file.

Chebyshev response and 4th Order Slope added to Band Pass, High Pass, and Low Pass - These filters display relatively steep roll-off characteristics, but, unlike the Butterworth filters, have ripple in their pass-band.

Filter Sweeper - A novel new filter which allows the user to apply varying degrees of notch, high and low pass filters over time. This is perfect in situations where more filtering is needed at the beginning of a file.

De-Esser with Variable Frequency Control to Dynamics Processor - This special compression algorithm is tooled directly to remove hard “s” sounds that occur in older and poorly recorded files.

Pencil Wave Form Drawing - Now you can zoom to single sample resolution and manually draw out clicks and pops that show up as spikes in the waveform.

Time Bracketed Play Range - Allows you to audition a selected area or play from the cursor and add a predetermined amount of space on each side. This is particularly useful when trying to zero in on a problem area.

Timer Recording - Just like your VCR…you can set your software to begin recording at a certain time and end recording later. This can be set to be a one time recording or a daily recording.

Signal Triggered VOX Recording - You can now trigger the software to begin recording automatically when a user determined level of signal is sustained for a user determined length of time.

Distortion Analyzer - New to the Spectrum Analyzer…measures the THD (Total Harmonic Distortion) of any device.

Peak Hold Added to VU Meters - Newly designed VU meters more closely resemble a high end stereo system readout.

Dithering Options for Resolution Conversion - Both Save as and the Sample Rate Conversion tool allow you to select from 3 different dithering options…Flat Spectrum, Triangular High Pass, and Noise Shape 2.

AIFF to wave file Converter - Simply open an AIFF file within the program and it’s instantly converted to a wave file. You can now easily work on your favorite Mac files and then export them back to their original format.

Drag and Drop File Support - Drag and drop any audio file supported by the program and it opens and converts it automatically.

Export Playlists - Export your playlist in a standard text file so that it can be used by numerous label making and CD writing programs.

Import/Export Preset Files - Now you can share your favorite Presets with other users of the Enhanced Audio family via the Internet.

Hundreds of New Factory Presets (Over 800 Total) - Always a great starting point. We’ve added a ton of new tools to this version; we’ve also followed it up with an incredible amount of “factory” presets to help get you in the ballpark.

New Keyboard Accelerators - We are always searching for ways to make the product easier to navigate. The accelerators just give you quick shortcuts to menu items.

Print Waveforms or any Screen Shot - A simple Print Screen function has been added with notation capabilities.

Up to 192 kHz/24 bit Sampling Rate Support - Now all popular sample rates and depths are supported.

Instant Channel Selection - Quickly and easily audition Left, Right or Stereo…even during playback. Apply any filter to either channel with one click of the mouse.

New Signal Generation Functions - White, Pink and Brown noise generators added.

New Lock Markers Function - Lock your markers in place so that you can’t accidentally move them while working.

New Marker Naming Function - Name your markers with text labels.

New Selectable Fonts and Colors - Manage your working environment to please your eyes.

New Windows WDM as well as MME Support - Will support virtually any sound card.

High Res Spectrum Analyzer Added - Now capable of resolving frequency increments as small as 0.02 Hz.

New P+C-based ALC - Ideal for speech processing…focus all 4 bands of Punch and Crunch on human speech frequencies.

Price $199.00 plus $8.00 p/h

CTP-1000 Computer Transfer Preamp (Unbalanced)

The New Way Of Thinking about Vinyl Restoration starts with one of the CTP preamps. The CTP-1000 offers incredible specs and delivers a perfectly flat signal to your computer...ideal for enhancing with DC SIX and transferring to CD. For the first time you can actually get pretty darn close to what the producer heard when your favorite recordings were played in the studio. This isn't just theoretical mumbo-jumbo...The CTP-1000 delivers results that anyone can hear.

The Specs:

(Specifications are typical and subject to change without notice)
  • Frequency Response: 10 Hz to 150 KHz, +/- 1 dB @ 2 Volts Peak to Peak Output
  • Maximum Output Voltage Swing: 5.75 Volts Peak to Peak w/ > 8.35 VDC Power Supply
  • Slew Rate: 3.25 Volts / uSec
  • Voltage Gain: 28 dB
  • Channel Separation: 60 dB @ 1 KHz
  • Total Harmonic Distortion + Noise: 0.008% @ 1 KHz
  • Signal to Noise Ratio (Referenced to 2 Vrms Output, A Weighted): 80 dB
  • Input Terminating Resistance: 47 KOhms
  • Output Impedance: 1 KOhm, Unbalanced
  • Power Supply Input Voltage Range: 8.35 Volts to 12 Volts DC
  • Power Supply Input Power Requirements: 9 Volt Battery or External 9 Volt DC Source
  • Power Supply Input Current: 3.5 mA @ 9 Volts DC Input, Quiescent
  • Power Supply Input Current Maximum: 14 mA @ 12 Volts DC
  • Power Supply Maximum Input Power: 170 mWatts @ 12 Volts DC
Our Price:$99

CTP1000-B Computer Transfer Preamp (Balanced)

The New Way Of Thinking about Vinyl Restoration starts with one of the CTP preamps. The CTP1000-B Mono Block Computer Transfer Preamp offers incredible specs and delivers a perfectly flat signal to your computer...ideal for enhancing with DC SIX and transferring to CD. For the first time you can actually get pretty darn close to what the producer heard when your favorite recordings were played in the studio. This isn't just theoretical mumbo-jumbo...The CTP1000-B delivers results that anyone can hear.

This is our 2nd new phono preamp system. It consists of two of our flat preamps, each engineered to provide balanced outputs to your appropriate soundcard. You must use this system only with a soundcard with Balanced inputs such as our ESI Julia sound card.

Balanced outputs provide several advantages including even lower levels of noise and higher signal levels.

The Specs:

(Specifications are typical and subject to change without notice)

  • Frequency Response: 10 Hz to 100 KHz, +/- 1 dB @ 2 Volts Peak to Peak Differential Mode Output
  • Maximum Differential Output Voltage Swing: 8.0 Volts Peak to Peak w/ > 8.35 VDC Power Supply
  • Slew Rate: 5 Volts / uSec
  • Voltage Gain: 40 dB
  • Channel Separation between 2 Mono-blocks: > 80 dB (Depends on System Configuration)
  • Total Harmonic Distortion + Noise: 0.004% @ 1 KHz
  • Signal to Noise Ratio (Referenced to 2.8 Vrms Differential Output, A Weighted): 82 dB
  • Input Terminating Resistance: 47 KOhms
  • Output Impedance: 1 KOhm, Balanced
  • Power Supply Input Voltage Range: 8.35 Volts to 12 Volts DC
  • Power Supply Input Power Requirements: 9 Volt Battery or External 9 Volt DC Source
  • Power Supply Input Current: 3.5 mA @ 9 Volts DC Input, Quiescent
  • Power Supply Input Current Maximum: 14 mA @ 12 Volts DC
  • Power Supply Maximum Input Power: 170 mWatts @ 12 Volts DC
Our Price: $229

ORDERING INFORMATION

Note- All Items above are quoted without shipping/handling charges.

Any of the above can be ordered as follows:

RECORDSMITH. 2803 Irisdale Ave, Richmond, Va 23228
tele/fax (804)261-1281
ALL major credit cards accepted...
or E-mailsales1@recordsmith.com
